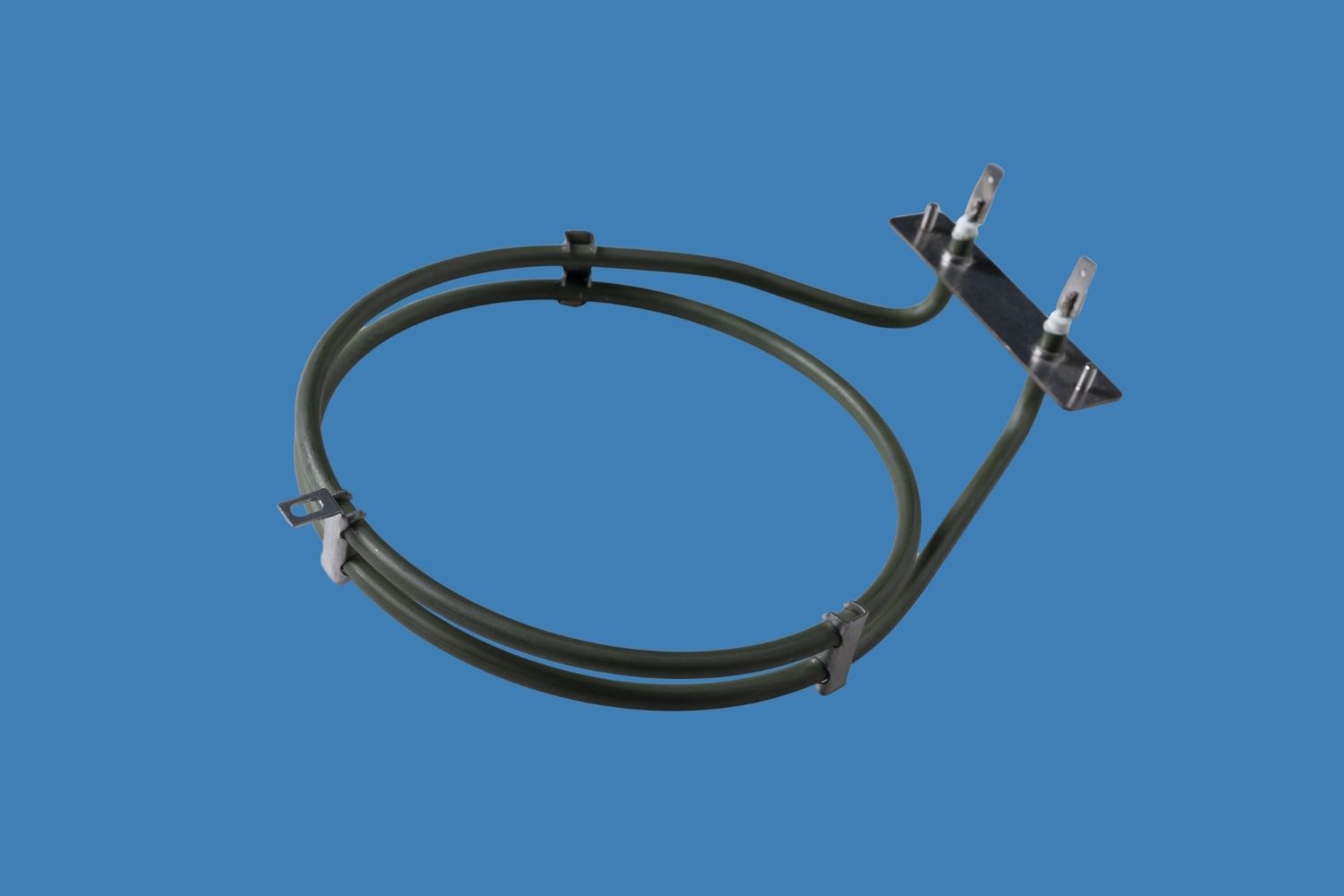

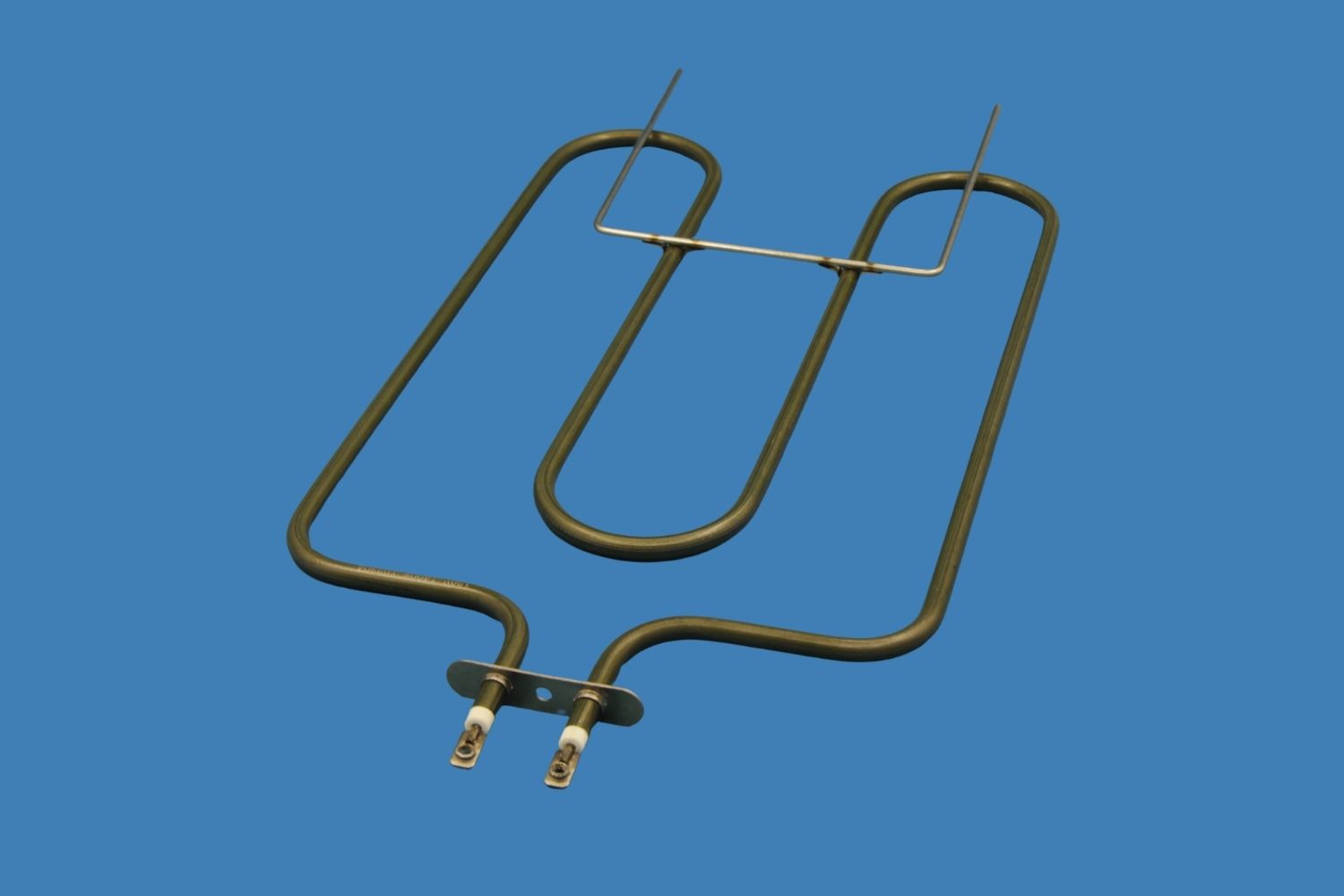

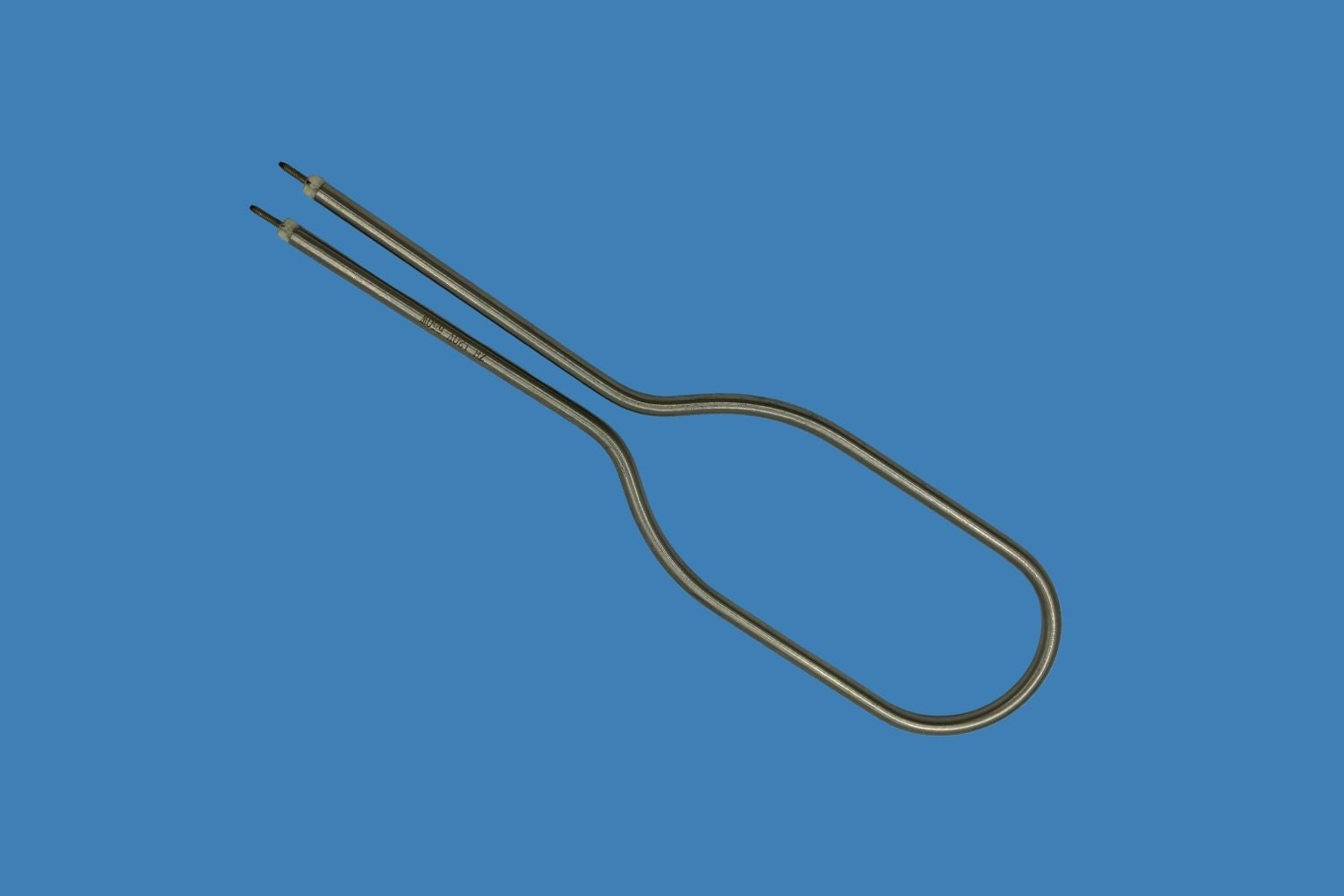

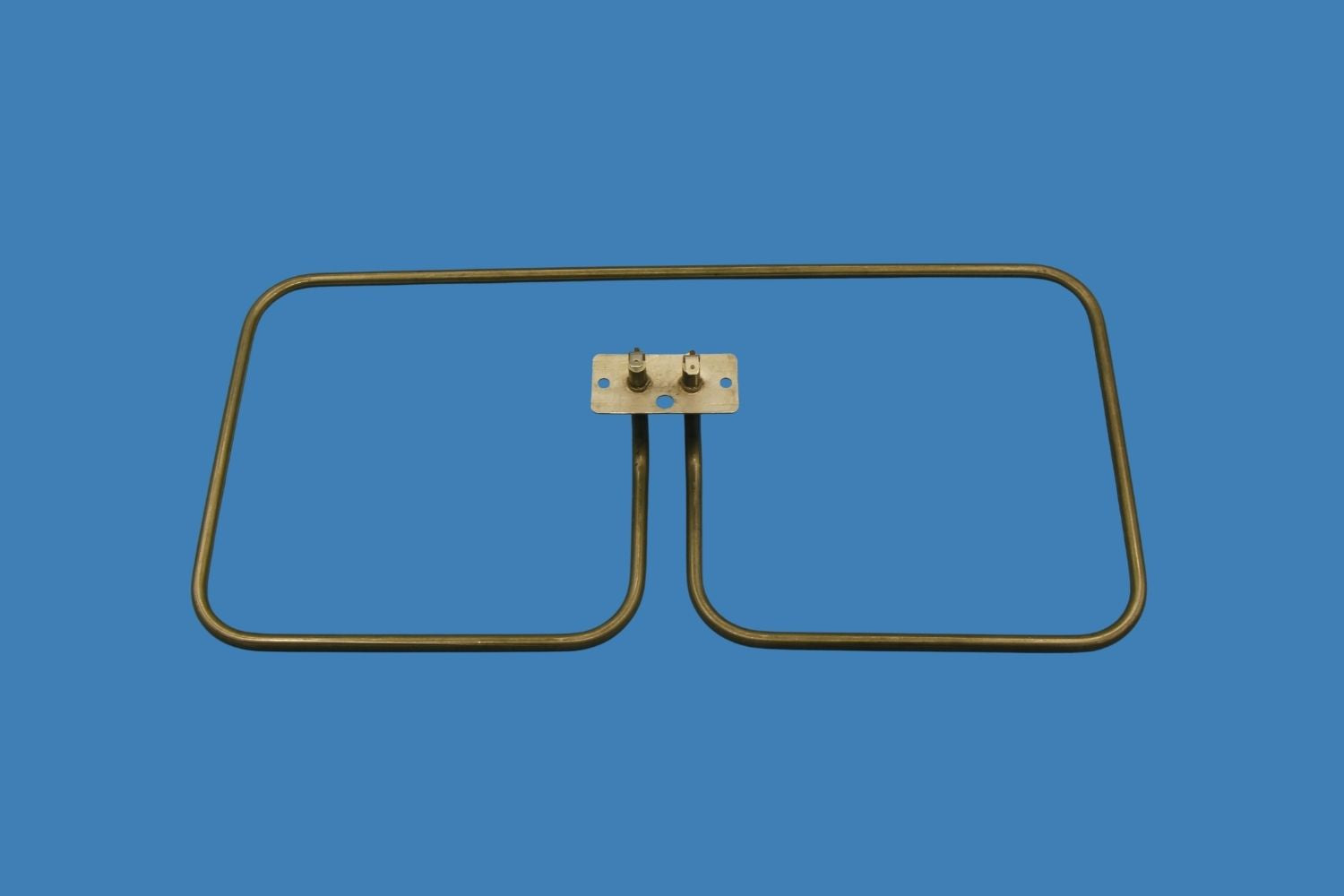

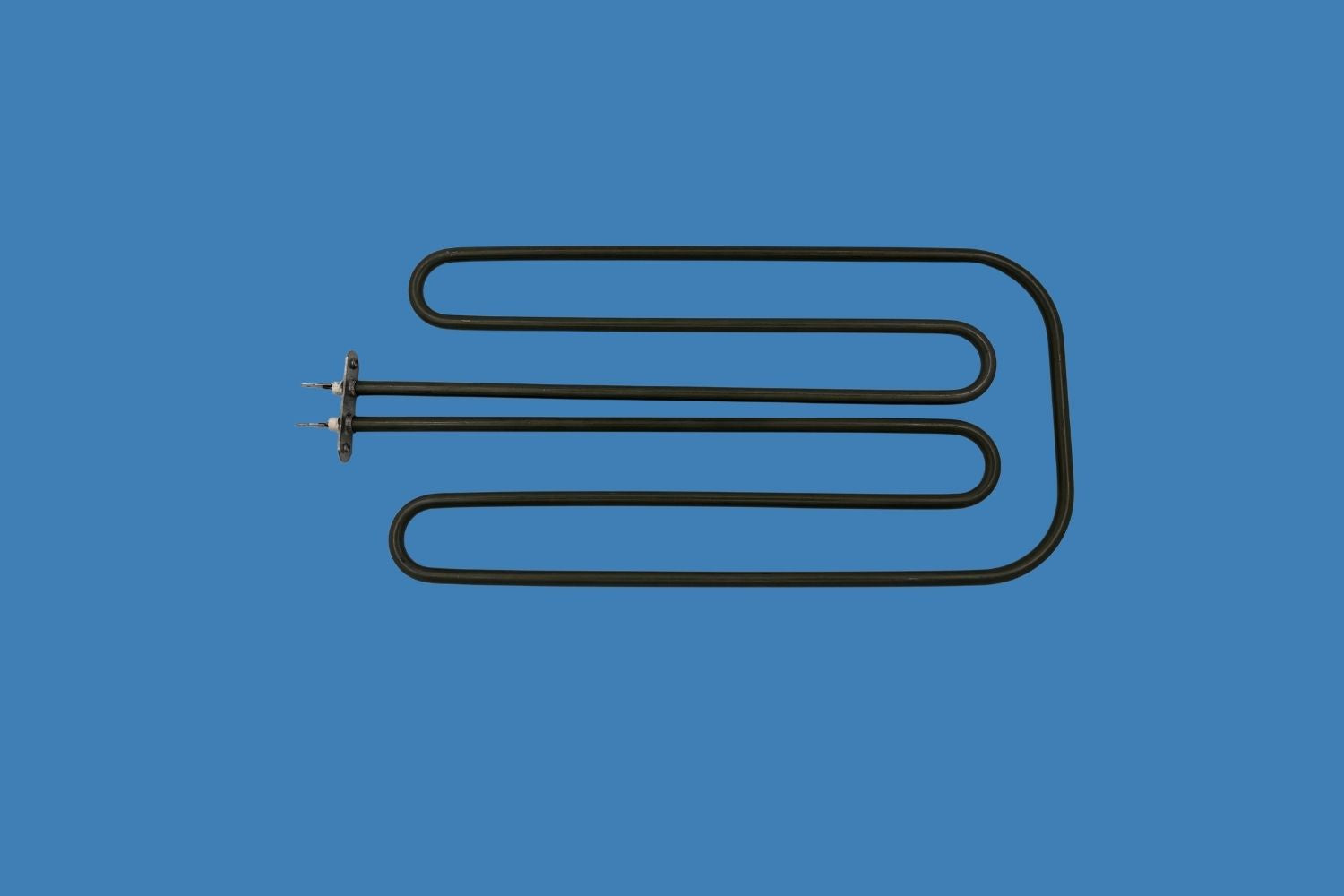

Tubular Heating Element
CE/UL/VDE/CQC Certified | Customized | Direct Factory Supply
- Precision Heat Transfer
- Corrosion Resistance
- Bend Flexibility
- Safety Compliance
- Cost-Effective Manufacturing
- Supply Chain Stability
Tubular Heating Element
Sale price$0.00
OEM appliance parts supplier
Request a Quote & Factory Profile:
Send us your BOM (Bill of Materials) or technical drawing today. We provide a comprehensive cost analysis within 24 hours.
Sheath material
SS 201/304/316L/321, Incoloy840
Sheath Diameter
6.6-8.5mm
Resistance wire
NiCr 8020/ OCr25Al5
Insulation
High-Purity Compacted MgO (>99%)
Lifespan Time
Tested ＞ 3000H
Watt Density
Customizable up to 6.5 W/cm2 (Air)
Leakage Current
<0.5 mA at operating temp
